Metal bending is an important process in manufacturing, construction, automotive production, engineering, and metal fabrication. It involves applying force to a metal workpiece to change its shape or angle without cutting it into separate pieces. The process is commonly used to create brackets, pipes, frames, panels, machine components, and structural parts. Metal bending can be performed manually with simple tools or mechanically using specialized equipment, such as press brakes, bending rollers, and tube-bending machines. The method selected depends on the type of metal, its thickness, the required shape, production volume, and dimensional accuracy. Understanding metal bending helps manufacturers and fabricators select suitable techniques, reduce material waste, and produce components that meet specific design requirements. It is also useful for engineers, students, workshop operators, and anyone interested in metalworking. This guide explains the main types of metal bending, commonly used techniques, applications, advantages, limitations, equipment considerations, and maintenance practices.
What Is Metal Bending?
Metal bending is a forming process in which force is applied to a metal sheet, plate, rod, tube, or profile to produce a permanent change in shape. The material is deformed beyond its elastic limit so that it retains the new shape after the force is removed.
During bending, the outer surface of the metal generally experiences tension, while the inner surface experiences compression. Between these areas is a region known as the neutral axis, where the length changes very little during bending.
The final shape depends on several factors, including the material's properties, thickness, bend radius, applied force, and tooling design. Some metals also experience springback, which means they partially return toward their original shape after the bending force is released.
For this reason, bending often requires adjustments to the machine settings and bending angle to achieve the intended final dimensions.
How Does the Metal Bending Process Work?
Although the equipment differs between applications, most metal bending operations follow a similar sequence.
Material selection: Choose a metal suitable for the component's intended use and forming requirements.
Measurement and marking: Determine the dimensions, bend locations, angles, and required radius.
Material preparation: Cut the workpiece to size and check that its surface and edges are suitable for forming.
Tool and machine setup: Select appropriate dies, punches, rollers, or bending fixtures.
Bending: Apply controlled force to shape the metal according to the design.
Inspection: Check the angle, dimensions, surface condition, and overall shape.
Finishing: Remove burrs if necessary and carry out additional operations such as coating, welding, or assembly.
For precision work, manufacturers may also use computer-aided design (CAD) software and computer numerical control (CNC) equipment to plan and repeat bending operations.
Main Types of Metal Bending
Different bending methods are used depending on the workpiece's geometry, material, and manufacturing requirements.

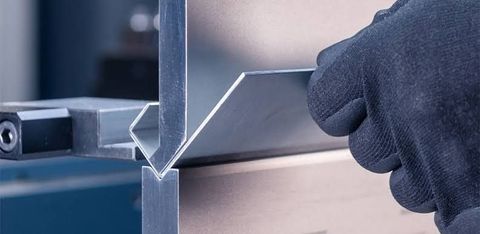

1. Air Bending
Air bending is a common sheet-metal forming method. A punch presses the metal into a V-shaped die without forcing it to make complete contact with the bottom of the die.
The final angle depends on the punch movement, die opening, material thickness, and material properties. This technique is frequently performed using press brakes.
Air bending is flexible because one tool arrangement can produce several different angles. However, springback must be considered, particularly when consistent angles are required.
2. Bottoming
Bottoming involves pressing the metal more firmly into the die so that the workpiece makes greater contact with the tooling surfaces.
Compared with air bending, bottoming can provide more consistent angles under suitable conditions. However, it generally requires more force and careful tooling selection.
The method is used when manufacturers need repeatable bends and the selected material and tooling are compatible with the process.
3. Coining
Coining applies high pressure to form the metal closely against the punch and die. The pressure can cause localized plastic deformation and reduce springback.
This technique can produce accurate bends, but it typically requires considerably greater force than air bending. Tool wear, material properties, and equipment capacity must be considered before using it.
4. Roll Bending
Roll bending uses a set of rollers to gradually curve sheet metal or plates. By adjusting the roller positions, operators can produce large-radius curves, cylinders, and curved structural sections.
It is commonly used for tanks, cylindrical enclosures, architectural components, and industrial vessels. Roll bending is particularly useful for long workpieces that require continuous curvature rather than a single sharp bend.
5. Tube and Pipe Bending
Tube and pipe bending changes the direction of hollow metal sections while attempting to maintain their structural integrity.
Different techniques are available, including rotary-draw bending, compression bending, and mandrel bending. A mandrel is an internal support used in suitable applications to help limit flattening and wrinkling.
These processes are widely used in exhaust systems, plumbing, furniture frames, industrial piping, and vehicle structures.
6. Rotary-Draw Bending
Rotary-draw bending uses a rotating form or bend die to draw a tube or profile around a specified radius. The process is suitable for repeatable bends and complex tube assemblies.
It is commonly used in automotive components, handrails, equipment frames, and applications where the bend geometry must be controlled.
7. Induction Bending
Induction bending uses localized heating to make a specific section of a metal pipe or profile more workable. The heated area is bent gradually as the workpiece moves through the bending equipment.
This method is often used for large-diameter pipes, heavy-wall sections, and industrial piping systems. Temperature control and cooling procedures are important for maintaining the required material properties.
Comparison of Common Metal Bending Methods
| Method | Main purpose | Common applications | Important consideration |
|---|---|---|---|
| Air bending | Producing angled sheet-metal parts | Cabinets, brackets, panels | Springback and angle control |
| Bottoming | Producing consistent bends | Fabricated components | Higher force and suitable tooling |
| Coining | Achieving closely controlled bends | Precision metal parts | High forming pressure |
| Roll bending | Creating gradual curves | Tanks, cylinders, curved plates | Roller adjustment and curvature |
| Tube bending | Shaping hollow sections | Pipes, frames, exhausts | Flattening and wall deformation |
| Rotary-draw bending | Producing repeatable tube bends | Automotive and structural parts | Tooling and bend-radius selection |
| Induction bending | Bending large or heavy sections | Industrial piping | Heating and process control |
Common Metal Bending Techniques and Equipment
Metal bending techniques are closely related to the equipment used to apply and control force.
Manual Bending
Manual bending uses hand-operated tools, bench fixtures, or small bending devices. It is appropriate for simple shapes, prototypes, repairs, and small workshop tasks.
Its main advantage is simplicity. However, maintaining consistent angles and dimensions can be difficult when many identical parts are required.
Press Brake Bending
A press brake uses a punch and die to bend sheet metal or plate material. Machines may be mechanically, hydraulically, electrically, or servo-electrically operated.
Modern press brakes can incorporate CNC controls, programmable backgauges, and angle-measurement systems. These features help improve repeatability and reduce setup errors.
CNC Bending
CNC bending equipment uses programmed instructions to control movements and bending sequences. It is useful for producing multiple components with consistent dimensions and complex geometries.
CNC systems can improve production efficiency, although results still depend on correct programming, tooling, material consistency, and operator knowledge.
Specialized Bending Equipment
Tube benders, section benders, and induction-bending machines are designed for particular workpiece shapes and applications. Selecting equipment based on the material and required geometry helps avoid excessive deformation and unnecessary processing costs.
Materials Used in Metal Bending
The suitability of a metal for bending depends on its strength, ductility, thickness, grain direction, and surface condition.
Carbon steel: Common in structural fabrication, brackets, frames, and general manufacturing.
Stainless steel: Used in food-processing equipment, enclosures, medical equipment, and applications requiring corrosion resistance.
Aluminium: Frequently selected for lightweight structures, vehicle components, housings, and architectural products.
Copper: Used in electrical components, heat exchangers, and plumbing applications.
Brass: Used in fittings, decorative components, and selected engineering applications.
Not every grade within these material groups behaves in the same way. Some high-strength metals require greater forming force, while less ductile materials may crack when bent too tightly.
The minimum practical bend radius should therefore be determined using material specifications, thickness, grain direction, and the intended manufacturing process.
Applications and Uses of Metal Bending
Metal bending supports many industries because it allows components to be formed into functional shapes without requiring every feature to be produced through cutting or welding.
Automotive Manufacturing
Automotive manufacturers use bending to produce exhaust pipes, brackets, chassis sections, body panels, seat frames, and structural reinforcements. Accurate bending helps components fit together during assembly.
Construction and Infrastructure
Metal bending is used to manufacture handrails, roof flashing, structural profiles, metal studs, support brackets, and architectural features. Reinforcing steel bars may also be bent to specified shapes for reinforced-concrete structures.
Industrial Machinery
Machine frames, protective guards, mounting brackets, conveyor components, and equipment housings frequently require bent metal parts. The correct dimensions and bend angles help maintain alignment and safe operation.
Electrical and Electronics
Electrical cabinets, server enclosures, mounting plates, cable trays, and equipment panels often use formed sheet metal. Controlled bending supports enclosure strength and provides space for internal components.
Plumbing and Industrial Piping
Pipe and tube bending is used to route fluids and gases around equipment, buildings, and industrial installations. Proper bend geometry helps avoid excessive deformation and restrictions in flow.
Furniture and Consumer Products
Metal chairs, tables, shelving systems, bed frames, appliances, and decorative fittings often include bent tubes, rods, or sheet-metal sections.
Aerospace and Transportation
Selected aircraft, rail, and transport components use carefully controlled metal-forming processes. Material traceability, dimensional inspection, and compliance with applicable engineering requirements are particularly important in these applications.
Benefits and Limitations of Metal Bending
Metal bending offers practical advantages, but the process also has limitations that must be considered during design and production.
Benefits
Reduced joining requirements: Some components can be formed from a single piece rather than assembled from several parts.
Efficient material use: Bending can reduce the need for cutting and joining in suitable designs.
Structural continuity: A properly formed component can retain continuous material through the bend.
Design flexibility: Different angles, curves, and profiles can be produced using appropriate tooling.
Repeatable production: CNC-controlled machines can reproduce programmed bends across production runs.
Wide application range: Bending can be used with many metals and workpiece shapes.
Limitations
Springback: The material may partially recover after bending, affecting the final angle.
Cracking risk: Excessive deformation or an unsuitable bend radius can damage the material.
Equipment requirements: Thick or high-strength materials may require machines with greater force capacity.
Shape restrictions: Very complex components may need multiple bending operations or additional manufacturing processes.
Surface damage: Incorrect tooling, handling, or lubrication can cause scratches and marks.
Setup costs: Specialized tooling and programming may add expense, particularly for small production quantities.
Latest Trends and Innovations in Metal Bending
Metal bending continues to develop through improvements in automation, machine control, measurement, and manufacturing software.
CNC Automation and Robotics
Automated bending cells combine programmable bending machines with robotic material handling. They can reduce repetitive manual handling and support consistent production when properly configured.
Real-Time Angle Measurement
Some modern systems use sensors and laser-based measurement to monitor bending angles during the forming process. These systems can compensate for variation in material properties and reduce the need for repeated manual corrections.
Digital Design and Simulation
CAD and manufacturing software help engineers calculate bend allowances, plan flat patterns, and identify potential design conflicts before production begins. Simulation can also help evaluate whether a proposed bend may cause excessive deformation.
Energy-Efficient Machine Systems
Electric and servo-electric bending machines can offer improved control and reduced energy consumption in suitable applications. Actual efficiency depends on the machine design, workload, production cycle, and operating conditions.
Data-Based Process Monitoring
Connected manufacturing equipment can record production settings, machine status, and quality measurements. This information helps production teams identify recurring problems, monitor equipment performance, and plan maintenance.
These developments can improve productivity, but they do not eliminate the need for suitable materials, correct tooling, operator training, and quality inspection.
Key Features to Consider When Selecting Metal Bending Equipment
The right machine depends on the components being manufactured and the expected production requirements.
| Feature | What to evaluate | Why it matters |
|---|---|---|
| Bending capacity | Maximum material thickness and strength | Prevents overloading the machine |
| Working length | Maximum component width or length | Ensures the workpiece fits |
| Accuracy | Angle and dimensional repeatability | Supports assembly and quality requirements |
| Tool compatibility | Available punches, dies, and fixtures | Determines process flexibility |
| Control system | Manual, programmable, or CNC | Affects setup and repeatability |
| Safety systems | Guards, interlocks, and emergency stops | Helps protect operators |
| Maintenance needs | Parts, servicing, and calibration | Affects long-term reliability |
| Operating cost | Energy, tooling, labour, and downtime | Supports realistic cost planning |
Top Companies and Metal Bending Solutions
Metal bending equipment is available from several established industrial manufacturers. Their product ranges differ, so the most suitable supplier depends on the application, location, machine capacity, service availability, and budget.
| Company | General equipment focus | Official website |
|---|---|---|
| TRUMPF | Sheet-metal fabrication and press brakes | https://www.trumpf.com |
| Bystronic | Sheet-metal processing and bending systems | https://www.bystronic.com |
| AMADA | Press brakes and sheet-metal fabrication equipment | https://www.amada.com |
| LVD | Press brakes and sheet-metal forming systems | https://www.lvdgroup.com |
| Prima Power | Sheet-metal processing and automated manufacturing systems | https://www.primapower.com |
These companies provide different equipment configurations and capabilities. The table is an overview, not a ranking, and does not imply that one manufacturer is suitable for every application.
Before selecting a supplier, review technical specifications, available tooling, local service support, operator training, spare-parts availability, and warranty conditions. Request a demonstration or sample bend when dimensional accuracy is important.
How to Choose the Right Metal Bending Method
Selecting the appropriate bending process starts with the component design rather than the machine alone.
Use the following checklist before making a decision:
Identify the material grade and thickness.
Define the required bend angles and inside radii.
Determine the component's length, width, and overall geometry.
Establish acceptable dimensional tolerances.
Estimate the number of parts required per production run.
Check whether the component needs a smooth curve or a sharp bend.
Confirm machine capacity and tooling compatibility.
Evaluate safety requirements and operator training needs.
Compare initial investment with operating and maintenance costs.
Plan inspection procedures for finished parts.
For a small number of simple brackets, manual equipment or a conventional press brake may be sufficient. Repetitive sheet-metal production may benefit from CNC press brakes. Long curved plates may be better suited to roll bending, while complex tube assemblies may require rotary-draw equipment.
For critical structural or pressure-related components, follow the applicable design standards, manufacturing specifications, and inspection requirements.
Best Practices for Metal Bending and Equipment Maintenance
Good preparation and regular maintenance help improve part quality and reduce avoidable equipment problems.
Before Bending
Inspect the material for cracks, corrosion, surface defects, and dimensional variation. Confirm that the selected bend radius is appropriate for the material and thickness. Check the machine's capacity and ensure the tooling is clean and correctly installed.
During Operation
Follow the manufacturer's operating instructions and keep hands away from pinch points. Use the required guards and safety systems. Avoid exceeding machine limits or attempting to compensate for incorrect tooling by applying excessive force.
For repeated production, inspect early parts before continuing with the full batch. This helps identify angle errors, springback, or material deformation before additional workpieces are processed.
After Bending
Measure the finished angle and dimensions using suitable inspection tools. Examine the bend area for cracks, wrinkles, excessive thinning, and surface damage.
Routine Maintenance
Clean the machine and tooling according to manufacturer guidance.
Inspect punches, dies, rollers, and fixtures for wear.
Check hydraulic systems and electrical components as specified.
Maintain lubrication where required.
Verify calibration and measuring-system accuracy at recommended intervals.
Record faults, repairs, inspections, and recurring quality issues.
Arrange servicing through qualified personnel when necessary.
Maintenance schedules should follow the equipment manufacturer's instructions and the demands of the operating environment.
Frequently Asked Questions About Metal Bending
1. What is the main purpose of metal bending?
The main purpose is to change the shape of metal into a required angle, curve, or profile for manufacturing, construction, assembly, or other practical uses.
2. Which metal bending method is most commonly used?
Press brake air bending is widely used for sheet-metal fabrication because it is versatile and can produce different angles with suitable tooling. Other methods are more appropriate for curved plates, tubes, or specialized applications.
3. Can all metals be bent?
Many metals can be bent, but their formability varies. Material grade, thickness, ductility, heat treatment, and bend radius affect whether a component can be formed without cracking or other damage.
4. Why does metal spring back after bending?
Springback occurs because some elastic deformation recovers when the applied force is removed. Its amount depends on the material, thickness, bend geometry, and forming conditions.
5. How can cracks during bending be prevented?
Use a suitable material grade, select an appropriate bend radius, consider grain direction, and ensure that the tooling and process are compatible with the workpiece. Test pieces may be useful when material behaviour is uncertain.
6. Is CNC bending better than manual bending?
CNC bending is generally more suitable for repeatable production, complex sequences, and consistent dimensions. Manual bending can be practical for simple tasks, prototypes, and low production volumes. The best choice depends on the required accuracy, quantity, and cost.
7. What is the difference between sheet-metal bending and pipe bending?
Sheet-metal bending usually forms flat material into angles or curves. Pipe bending shapes hollow sections while controlling issues such as flattening, wrinkling, and wall thinning.
8. How is metal bending accuracy checked?
Accuracy can be checked by measuring bend angles, dimensions, radii, and overall shape using appropriate gauges, calipers, angle-measuring instruments, or automated measurement systems. Inspection requirements depend on the component's function.
9. Does metal bending weaken the material?
Bending changes the material's stress and strain distribution and may cause local thinning or work hardening. Whether this affects component performance depends on the material, bend geometry, process, and design requirements.
10. What safety precautions are important during metal bending?
Operators should receive appropriate training, use machine guards and required protective equipment, keep clear of pinch points, secure the workpiece properly, and follow the machine manufacturer's safety instructions.
Conclusion
Metal bending is a widely used manufacturing process that transforms metal into functional shapes for applications ranging from simple brackets to industrial piping and structural components. Its effectiveness depends on selecting a suitable material, bending method, machine, and tooling for the intended design.
Air bending, bottoming, coining, roll bending, and tube bending each serve different purposes. Modern CNC controls, automated handling, and measurement systems can improve repeatability, while proper inspection and maintenance help maintain product quality.
The most practical approach is to begin with the component's requirements, evaluate material behaviour and production volume, and choose a process that meets the necessary standards without adding unnecessary complexity. Careful planning, trained operators, and consistent quality checks remain essential for safe and reliable metal bending.
