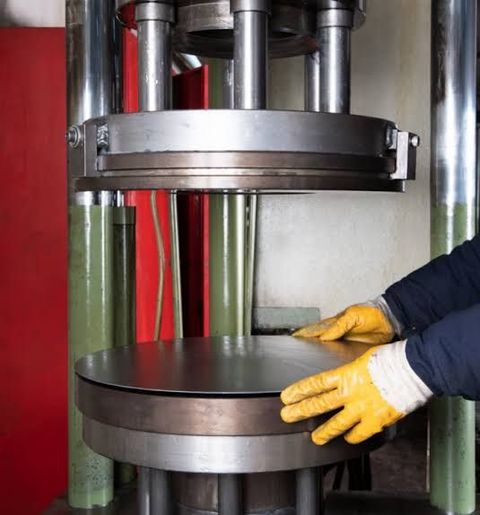

A hydraulic press machine is an industrial machine that uses hydraulic pressure to generate a controlled compressive force. Unlike mechanical presses that primarily rely on flywheels, gears, or crank mechanisms, hydraulic presses use a hydraulic cylinder, pump, fluid, and control system to produce and apply force. Hydraulic presses are used across many industries because they can provide substantial force while allowing operators to control pressure, stroke, and pressing speed. Depending on their design, they can be used for forming metal, bending components, pressing bearings, compacting materials, molding products, and performing assembly or repair operations. The basic principle is relatively simple: hydraulic fluid is pressurized and directed into a cylinder, where it pushes a piston. The resulting linear force is transferred to a ram or pressing tool. Understanding how this process works can help businesses, technicians, and machine operators select and use hydraulic press equipment appropriately.
What Is a Hydraulic Press Machine?
A hydraulic press is a machine that uses pressurized hydraulic fluid to move a piston and generate force. Its operation is based on Pascal's principle, which states that pressure applied to a confined fluid is transmitted throughout the fluid.
A typical hydraulic press includes:
- Hydraulic cylinder
- Hydraulic pump
- Reservoir or fluid tank
- Hydraulic oil or another suitable fluid
- Control valves
- Pressure gauge or electronic pressure sensor
- Ram or piston
- Press frame
- Worktable
- Dies, plates, or other tooling
The capacity of a hydraulic press is generally described in tons or kilonewtons. The appropriate capacity depends on the material, operation, tooling, dimensions, and required pressing force.
How Does a Hydraulic Press Work?
The working process can be divided into several stages.
1. Hydraulic Fluid Storage
Hydraulic fluid is stored in a reservoir. The fluid serves as the medium through which pressure and energy are transferred.
2. Pump Generates Flow
A hydraulic pump draws fluid from the reservoir and sends it through the hydraulic circuit. The pump creates fluid flow, while system pressure develops as the flow encounters resistance.
3. Pressure Is Controlled
Valves regulate the direction and amount of hydraulic fluid entering the cylinder. A pressure relief valve can help prevent the system from exceeding its designed pressure.
4. Cylinder Moves the Ram
Pressurized fluid enters the cylinder and acts on the piston. This produces linear movement that moves the ram toward the workpiece.
5. Force Is Applied
The ram applies force to the material or component placed on the press bed. Depending on the tooling, the machine may bend, shape, compress, punch, form, assemble, or compact the material.
6. Ram Returns
After the pressing cycle is completed, hydraulic flow is redirected or released so that the ram can return to its original position. The exact return mechanism depends on the machine design.
Types of Hydraulic Presses
Hydraulic presses can be categorized according to their frame design, operating method, application, and number of cylinders.
| Type | General Characteristics | Common Uses |
|---|---|---|
| H-Frame Press | Rigid frame with an H-shaped structure | Maintenance, fabrication, forming |
| C-Frame Press | Open-front design for easier access | Assembly, punching, light forming |
| Four-Column Press | Four vertical columns support the working structure | Molding, deep forming, larger components |
| Two-Column Press | Uses two main support columns | Forming and general industrial work |
| Bench Hydraulic Press | Compact design for smaller operations | Workshops and repair work |
| Shop Press | General-purpose hydraulic pressing equipment | Bearings, bushings, shafts, assembly |
| Hydraulic Forging Press | Designed for high-force forming | Forging and metal shaping |
| Hydraulic Baling Press | Compresses recyclable or other materials | Recycling and waste handling |
The best configuration depends on the required force, workpiece dimensions, production volume, tooling requirements, and available workspace.
Key Features to Consider
When evaluating a hydraulic press, several technical characteristics deserve attention.
Press Capacity
Capacity indicates the maximum force the machine is designed to produce. Selecting a capacity that matches the intended application helps avoid unnecessary loading.
Working Stroke
The stroke determines how far the ram can travel. A longer stroke can be useful when working with taller components or applications requiring greater movement.
Daylight or Working Height
The available space between the ram and worktable affects the size of components that can be positioned inside the press.
Table Size
The worktable should provide sufficient space for the workpiece and tooling while maintaining appropriate clearance.
Operating Speed
Some applications require rapid movement for productivity, while others benefit from slower and more controlled pressing.
Pressure Control
Accurate pressure control is important when consistent force is required. Depending on the machine, this may involve pressure gauges, sensors, valves, or electronic controls.
Frame Construction
The frame must withstand repeated loading without excessive deformation. Frame design also affects machine stability and working accuracy.
Control System
Hydraulic presses may use manual controls, hydraulic controls, or programmable electronic systems. More advanced systems can provide greater control over pressure, position, speed, and cycle timing.
Advantages of Hydraulic Presses
Hydraulic presses offer several practical advantages.
High Force Capability
Hydraulic systems can generate substantial pressing forces while maintaining a relatively compact power system.
Controlled Operation
Operators can control pressure, movement, and stroke depending on the machine configuration.
Versatility
The same press can often perform multiple operations by changing dies, fixtures, or tooling.
Consistent Force
A properly maintained hydraulic system can deliver relatively consistent force during repeated operations.
Adjustable Working Parameters
Many machines allow pressure and operating speed to be adjusted for different materials and processes.
Suitable for Various Materials
Hydraulic presses can be used with metals, plastics, composites, rubber, and other materials when the machine and tooling are properly matched to the application.
Disadvantages and Limitations
Hydraulic presses also have limitations that should be considered.
Hydraulic Fluid Maintenance
Fluid contamination, incorrect fluid levels, leaks, or degraded oil can affect system performance.
Potential Leakage
Hydraulic systems contain hoses, fittings, seals, valves, and cylinders that can develop leaks over time.
Slower Operation in Some Applications
Certain hydraulic presses may operate more slowly than high-speed mechanical presses, particularly when high force and controlled movement are required.
Heat Generation
Continuous operation can generate heat in the hydraulic system. Excessive heat can affect fluid properties and component life.
Maintenance Requirements
Regular inspection of hydraulic fluid, filters, seals, hoses, valves, and other components is necessary.
Initial Equipment Requirements
A complete hydraulic press system may require additional tooling, hydraulic components, electrical controls, guarding, and installation space.
Safety Considerations
Hydraulic presses can generate extremely high forces, so safe operating procedures are essential.
Before operating a press, users should check:
- The machine is installed on a stable and suitable surface.
- Guards and protective devices are correctly installed.
- Hydraulic hoses and fittings show no visible damage or leakage.
- The pressure system is within its specified operating range.
- Dies and fixtures are correctly installed and aligned.
- The workpiece is positioned securely.
- Emergency stop controls are accessible and functional.
- Operators have received appropriate training.
- Loose clothing, jewelry, and other items that could become caught are kept away from moving components.
Operators should never place hands or body parts between the ram and workpiece during operation. The machine should not be used beyond its rated capacity or with damaged tooling.
Maintenance and inspection should be performed according to the manufacturer's instructions and applicable workplace safety requirements.
Latest Trends and Innovations
Modern hydraulic presses are increasingly incorporating electronic monitoring and automation.
Digital Pressure Monitoring
Electronic sensors can provide more precise monitoring of pressure compared with basic analog gauges.
Programmable Controls
Programmable control systems can allow operators to define pressing sequences, pressure levels, dwell times, and return cycles.
Energy-Efficient Hydraulic Systems
Variable-speed pumps and improved hydraulic control technologies can reduce unnecessary energy consumption in some applications.
Automation and Robotics
Hydraulic presses can be integrated with robotic loading and unloading systems in automated production environments.
Condition Monitoring
Sensors can monitor factors such as pressure, temperature, cycle count, and other operating parameters. This information can help maintenance teams identify developing problems.
Data-Based Maintenance
Connected equipment can provide operating information that supports maintenance planning and process monitoring.
These developments do not eliminate the need for operator training or mechanical inspection. Instead, they provide additional tools for controlling and monitoring the machine.
Hydraulic Press Manufacturers and Solutions
The hydraulic press market includes manufacturers that produce general-purpose workshop presses as well as specialized industrial equipment. Examples include:
- Schuler — develops forming and press technology for industrial manufacturing.
- HACO — offers hydraulic press equipment and other metalworking machinery.
- Enerpac — provides hydraulic equipment and high-force systems used in industrial applications.
- Baileigh Industrial — supplies various workshop and fabrication machines, including hydraulic presses.
When comparing manufacturers, users should focus on specifications, service availability, replacement parts, safety features, documentation, tooling compatibility, and application requirements rather than relying only on brand names.
How to Choose the Right Hydraulic Press
Choosing a hydraulic press starts with understanding the actual application.
Selection Checklist
| Requirement | Questions to Ask |
|---|---|
| Force | How much pressing force is required? |
| Material | What materials will be processed? |
| Workpiece | What are the maximum dimensions and weight? |
| Stroke | How much ram movement is required? |
| Speed | Is rapid cycling necessary? |
| Accuracy | How precisely must pressure or position be controlled? |
| Production | How many cycles are expected per day? |
| Tooling | What dies or fixtures will be required? |
| Space | How much installation space is available? |
| Maintenance | What service resources are available? |
| Safety | What guarding and safety systems are required? |
| Budget | What are the equipment, installation, and operating costs? |
Avoid selecting a press based only on maximum tonnage. A machine should also match the required stroke, working area, speed, tooling, control system, and production conditions.
Tips for Proper Use and Maintenance
Regular maintenance can help support safe and consistent operation.
Check Hydraulic Fluid
Inspect fluid levels and follow the manufacturer's recommendations for the correct hydraulic fluid type and replacement intervals.
Inspect for Leaks
Regularly check hoses, fittings, cylinders, seals, and connections for signs of leakage.
Keep Components Clean
Dirt and contamination can enter hydraulic systems and affect valves, pumps, and cylinders. Keep the surrounding work area clean.
Inspect Tooling
Damaged, incorrectly installed, or poorly aligned tooling can create safety and quality problems.
Monitor Unusual Noise
Unexpected noise, vibration, slow movement, or inconsistent pressure can indicate a developing mechanical or hydraulic problem.
Follow Service Intervals
Filters, hydraulic fluid, seals, and other components should be inspected or replaced according to manufacturer recommendations.
Do Not Exceed Rated Capacity
Operating above the machine's specified capacity can increase the risk of equipment damage and unsafe conditions.
Frequently Asked Questions
What is a hydraulic press mainly used for?
Hydraulic presses are used for operations such as forming, bending, pressing, molding, compacting, assembling, and removing or installing components.
How does a hydraulic press generate force?
A pump moves hydraulic fluid into a cylinder. The pressure acting on the piston produces linear force, which moves the ram and applies force to the workpiece.
What is the difference between a hydraulic and mechanical press?
A hydraulic press generates force through hydraulic pressure, while a mechanical press generally uses mechanical mechanisms such as a crank, eccentric, or flywheel. Hydraulic presses can provide controlled force and stroke characteristics, while mechanical presses are often selected for high-speed repetitive operations.
How often should hydraulic fluid be changed?
The interval depends on the machine, fluid condition, operating environment, and manufacturer's recommendations. Fluid condition and contamination should be monitored rather than relying only on a fixed calendar interval.
Can a hydraulic press be used for different applications?
Yes. Many presses can perform different operations when appropriate dies, fixtures, and tooling are installed. However, every application must remain within the machine's rated specifications.
Is a hydraulic press safe to operate?
A hydraulic press can be operated safely when it is correctly installed, maintained, guarded, and used by trained operators following appropriate safety procedures. The high force generated by these machines means that safe working practices are essential.
What causes a hydraulic press to lose pressure?
Possible causes include hydraulic leaks, damaged seals, contaminated or insufficient fluid, faulty valves, pump problems, or other system faults. A qualified technician should diagnose pressure-related problems.
Conclusion
Hydraulic presses are versatile machines that use controlled hydraulic pressure to generate substantial force for forming, pressing, molding, assembly, repair, and other industrial processes. Their ability to provide adjustable force and controlled movement makes them useful across workshops and manufacturing environments.
At the same time, selecting and operating a hydraulic press requires attention to capacity, stroke, tooling, safety systems, maintenance requirements, and the characteristics of the intended application. Modern systems increasingly add digital monitoring, programmable controls, automation, and energy-management features.
For anyone evaluating hydraulic press equipment, the most practical approach is to begin with the application rather than the machine itself. Define the required force, workpiece size, operating cycle, accuracy, tooling, safety requirements, and maintenance needs. These factors provide a clearer basis for selecting equipment that fits the intended work and operating environment.
