Industrial calibration plays an important role in maintaining measurement accuracy, product quality, and reliable equipment performance. In manufacturing plants, laboratories, pharmaceutical facilities, food processing units, energy systems, and other industrial environments, many decisions depend on measurements. These measurements may include temperature, pressure, weight, electrical current, humidity, flow rate, or physical dimensions. Even a small measurement error can affect production processes, product consistency, equipment safety, and compliance with quality requirements. For example, a pressure sensor that provides an incorrect reading may affect the operation of a hydraulic system, while an inaccurate temperature instrument may create difficulties in maintaining controlled manufacturing conditions. Industrial calibration services help organizations determine whether their measuring instruments provide accurate results when compared with recognized reference standards. When necessary, adjustments or repairs can be performed to bring an instrument within its required tolerance. Understanding calibration methods, measurement tools, service options, and quality standards helps businesses establish effective measurement control. It also helps technicians, engineers, and quality managers decide when equipment should be checked, which calibration approach is suitable, and how measurement records should be maintained.
What Are Industrial Calibration Services?
Industrial calibration services involve comparing the readings of a measuring instrument with a reference standard that has known measurement characteristics. The comparison helps identify the difference between the instrument's displayed value and the reference value.
Calibration does not automatically mean that an instrument is repaired or adjusted. Instead, it establishes how the instrument performs under specified conditions. If the results fall outside the acceptable tolerance, the instrument may need adjustment, repair, restricted use, or replacement.

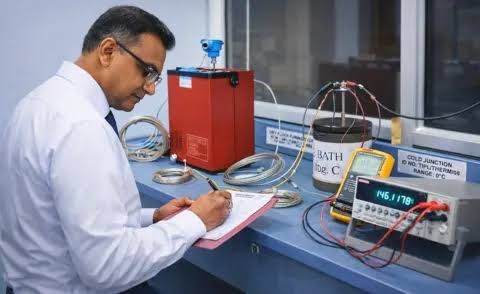

Calibration can be carried out in a controlled laboratory or directly at an industrial facility. The appropriate method depends on the instrument, operating environment, measurement requirements, and applicable quality procedures.
How Calibration Works
A typical calibration process includes the following steps:
Instrument identification: The technician records the instrument's identification number, manufacturer, model, range, and other relevant details.
Visual inspection: The instrument is checked for physical damage, contamination, worn components, and signs of incorrect operation.
Reference selection: A suitable reference instrument or standard is selected according to the required measurement range and accuracy.
Measurement comparison: Readings from the instrument under test are compared with reference values at selected points.
Results evaluation: The differences are calculated and compared with specified acceptance limits.
Adjustment or repair, if required: Work is performed according to the customer's authorization and the instrument's design.
Documentation: Results, measurement uncertainty where applicable, traceability information, and relevant conditions are recorded in a calibration report or certificate.
These steps help organizations understand the condition of their equipment and make informed decisions about its continued use.
Why Industrial Calibration Matters
Calibration is important because industrial operations depend on consistent and dependable measurements. Without an effective calibration program, organizations may not know whether their instruments are providing suitable readings.
Benefits of Industrial Calibration
Improved measurement accuracy: Calibration identifies differences between instrument readings and reference values. This helps users understand the reliability of their measurements.
Consistent product quality: Manufacturing processes often rely on specific dimensions, temperatures, pressures, and material quantities. Accurate instruments help maintain consistent production conditions.
Reduced process errors: Incorrect readings can lead to unnecessary adjustments, rejected products, repeated testing, or production interruptions. Calibration helps identify measurement problems before they contribute to larger issues.
Support for quality management: Documented calibration results can help organizations demonstrate that measurement equipment is controlled under their quality management procedures.
Better equipment management: Calibration records can reveal recurring measurement problems, instrument drift, or equipment that requires more frequent attention.
Improved decision-making: Reliable measurements support maintenance planning, process monitoring, laboratory testing, and technical investigations.
Limitations of Calibration
Calibration is valuable, but it has limitations that organizations should understand.
Calibration describes instrument performance under specified conditions; it does not guarantee perfect accuracy in every operating environment.
A calibration certificate does not automatically mean that an instrument meets the user's acceptance requirements.
Instruments can drift after calibration because of aging, vibration, temperature changes, contamination, or normal wear.
Calibration cannot correct every mechanical, electrical, or software-related problem.
High-accuracy calibration can require specialized equipment, skilled personnel, controlled environments, and additional time.
Measurement uncertainty remains relevant even when an instrument is calibrated.
For these reasons, calibration should be part of a broader measurement management program that includes proper handling, maintenance, verification, and periodic review.
Types of Industrial Calibration Services
Industrial calibration covers different measurement categories. The appropriate service depends on the physical quantity being measured and the characteristics of the instrument.
1. Pressure Calibration
Pressure calibration checks instruments such as pressure gauges, pressure transmitters, vacuum gauges, and pressure switches.
It is commonly used in hydraulic systems, pneumatic equipment, boilers, process pipelines, and industrial testing facilities. Reference pressure calibrators, deadweight testers, and suitable pressure sensors may be used, depending on the range and required uncertainty.
2. Temperature Calibration
Temperature calibration evaluates thermometers, thermocouples, resistance temperature detectors, temperature transmitters, and temperature controllers.
Equipment may include dry-block calibrators, temperature baths, reference thermometers, and specialized temperature measurement systems. Applications include food processing, pharmaceutical manufacturing, industrial furnaces, refrigeration, and environmental monitoring.
3. Electrical Calibration
Electrical calibration covers instruments that measure voltage, current, resistance, frequency, and related electrical quantities.
Common examples include digital multimeters, clamp meters, electrical calibrators, and process signal instruments. These services are relevant to electrical maintenance, automation, electronics manufacturing, and laboratory testing.
4. Dimensional Calibration
Dimensional calibration concerns tools used to measure length, thickness, diameter, flatness, and other physical dimensions.
Examples include micrometers, vernier calipers, dial indicators, gauge blocks, and coordinate measuring equipment. Manufacturing and machining operations use dimensional measurements to assess whether components meet specified tolerances.
5. Mass and Weighing Calibration
This category includes industrial scales, laboratory balances, weighing systems, and mass standards.
Calibration may involve reference weights, suitable environmental controls, and defined loading procedures. It is useful in packaging, material handling, laboratories, chemical processing, and production environments where material quantities must be controlled.
6. Flow Calibration
Flow calibration checks instruments that measure the movement of liquids, gases, or steam.
Examples include flowmeters, flow transmitters, and related measurement systems. Reference methods can include gravimetric, volumetric, or other suitable comparison techniques. The correct method depends on the fluid, flow range, operating conditions, and instrument design.
7. Humidity and Environmental Calibration
Humidity and environmental calibration applies to relative humidity sensors, environmental monitoring instruments, and related devices.
It is relevant to storage facilities, laboratories, cleanrooms, food processing, and pharmaceutical environments where environmental conditions require monitoring.
8. Force and Torque Calibration
Force and torque calibration evaluates load cells, force gauges, torque wrenches, torque transducers, and testing machines.
These measurements are important in assembly operations, material testing, automotive manufacturing, structural testing, and maintenance activities.
Common Measurement Tools Used in Calibration
Different instruments require different reference standards and calibration equipment. Selecting a suitable tool involves considering the measurement range, accuracy, uncertainty, and intended application.
| Measurement tool | Primary function | Typical applications |
|---|---|---|
| Digital multimeter | Measures electrical quantities | Electrical maintenance and testing |
| Pressure calibrator | Compares and generates pressure signals | Process control and hydraulic systems |
| Dry-block temperature calibrator | Provides controlled temperature points | Industrial temperature instruments |
| Reference thermometer | Measures temperature against a reference | Laboratories and process monitoring |
| Gauge blocks | Provide known dimensional references | Precision manufacturing |
| Calibration weights | Support mass and weighing checks | Industrial scales and balances |
| Electrical process calibrator | Generates or measures process signals | Automation and instrumentation |
| Flow calibration system | Establishes reference flow measurements | Fluid processing and utilities |
| Torque tester | Checks torque measurement devices | Assembly and maintenance |
| Humidity generator | Produces controlled humidity conditions | Environmental monitoring |
A tool's suitability depends on its technical specifications and the calibration procedure. The reference standard should generally provide sufficient measurement capability for the required tolerance and uncertainty.
Major Quality Standards and Measurement Requirements
Quality standards help organizations establish consistent procedures for calibration, measurement traceability, competence, and documentation. The applicable requirements depend on the industry, instrument, customer specifications, and regulatory environment.
ISO/IEC 17025
ISO/IEC 17025 specifies general requirements for the competence, impartiality, and consistent operation of testing and calibration laboratories.
Laboratories accredited to this standard are assessed against relevant competence and technical requirements within their accredited scope. Accreditation does not mean that every measurement service offered by a laboratory is necessarily covered. Customers should verify the laboratory's scope for the specific quantity, range, and calibration method required.
ISO 9001
ISO 9001 is a quality management system standard. It addresses how organizations manage processes, responsibilities, documented information, and continual improvement.
For measurement equipment, organizations should determine which resources are needed to obtain valid and reliable results. Where measurement traceability is required or considered essential for confidence in results, appropriate calibration or verification controls should be maintained.
ISO 9001 certification is not the same as calibration laboratory accreditation.
Metrological Traceability
Metrological traceability means that a measurement result can be related to a reference through a documented, unbroken chain of calibrations, with each step contributing to measurement uncertainty.
Traceability may be established through national or international measurement standards or other suitable recognized references. The supporting documentation should be appropriate for the measurement being performed.
Measurement Uncertainty
Measurement uncertainty describes the range of values that can reasonably be attributed to a measurement result, based on the available information.
It is not simply an instrument's error or tolerance. Factors such as reference standard performance, environmental conditions, repeatability, resolution, and measurement methods may contribute to uncertainty.
Other Relevant Standards and Requirements
Depending on the application, organizations may encounter industry-specific requirements, national metrology rules, customer specifications, and regulatory expectations. Certain sectors may also require additional controls for equipment used in safety-critical or regulated processes.
A useful starting point is to identify the applicable standard, confirm the exact requirement, and determine whether it applies to the instrument, the laboratory, the organization, or the overall process.
Understanding a Calibration Certificate
A calibration certificate or report documents the results of a calibration activity. Its exact contents depend on the laboratory, service, applicable requirements, and type of instrument.
A useful certificate may include:
Customer and instrument identification details.
Manufacturer, model, serial number, or equipment identification number.
Calibration date and, where applicable, environmental conditions.
Reference standards and relevant traceability information.
Measurement points, reference values, observed values, and calculated errors.
Measurement uncertainty, where applicable.
The calibration method or procedure.
Results before and after adjustment, if adjustment was performed.
A statement of conformity, when requested and supported by an agreed decision rule.
Authorized approval and laboratory details.
Users should not rely only on a label stating that an instrument is calibrated. They should review the recorded results and confirm whether the instrument meets the required acceptance limits.
A calibration due date is usually determined by the equipment owner or relevant quality procedure. A laboratory may provide a recommendation, but a universal calibration interval does not apply to every instrument.
Latest Trends and Developments in Industrial Calibration
Calibration practices continue to develop alongside automation, digital measurement systems, and data management technologies.
Digital Calibration Records
Digital certificates and electronic equipment records make it easier to retrieve calibration history, track due dates, and prepare documentation for internal or external audits. Their usefulness depends on appropriate access controls, data integrity, and reliable record management.
Automated Calibration Systems
Automated systems can perform predefined measurement sequences and collect readings with reduced manual data entry. They can improve repeatability and efficiency when properly configured and validated.
Integration With Maintenance Software
Calibration schedules can be integrated with computerized maintenance management systems and asset management platforms. This helps maintenance teams monitor equipment status and coordinate calibration with planned servicing.
Remote Monitoring and Smart Sensors
Connected instruments can provide operational data that helps identify unusual measurement behavior. Such monitoring may support risk-based calibration planning, but it does not automatically replace formal calibration when calibration is required.
Risk-Based Calibration Intervals
Instead of treating every instrument identically, organizations may use historical results, stability, operating conditions, criticality, and failure consequences to review calibration intervals. Changes should be documented and justified under the applicable quality system.
These developments can improve recordkeeping and workflow efficiency, but the fundamental requirements remain the same: suitable measurement methods, competent personnel, traceability where required, and reliable documentation.
Top Calibration Service Providers and Available Solutions
Calibration services are provided by government laboratories, accredited private laboratories, equipment manufacturers, and specialized metrology companies. The most suitable option depends on the measurement category, required accuracy, location, turnaround time, and accreditation requirements.
The following organizations provide useful starting points for researching calibration services and quality requirements.
| Organization | Main focus | Suitable for |
|---|---|---|
| STQC | Government calibration services in India, including electrical and non-electrical measurements | Industrial organizations seeking calibration and measurement support |
| NABL | Accreditation of testing and calibration laboratories in India | Checking laboratory accreditation and relevant scopes |
| NIST | Measurement science, reference standards, and calibration services | Understanding measurement traceability and specialized reference services |
| Fluke Calibration | Calibration equipment, electrical standards, temperature and pressure solutions | Organizations using precision measurement equipment |
| Keysight Technologies | Electronic test equipment, measurement solutions, and calibration support | Electronics, electrical testing, and research applications |
| WIKA | Pressure and temperature measurement instruments and calibration solutions | Process industries and industrial instrumentation |
| Mitutoyo | Precision dimensional measurement instruments and metrology solutions | Machining, manufacturing, and dimensional inspection |
These organizations do not provide identical services in every location. Availability, service scope, and accreditation should be confirmed directly with the relevant organization or laboratory. A manufacturer's service capability should not automatically be treated as proof of accreditation for every calibration it performs.
Comparing Calibration Service Options
| Service option | Advantages | Limitations |
|---|---|---|
| Accredited external laboratory | Documented technical competence within its accredited scope | Transport and scheduling may increase turnaround time |
| On-site calibration | Reduces instrument transportation and can reflect installation conditions | Site conditions may limit achievable uncertainty or available methods |
| Manufacturer calibration service | May offer instrument-specific knowledge and procedures | Accreditation and scope still need verification |
| In-house calibration | Provides direct control over schedules and routine checks | Requires competent staff, suitable standards, and controlled procedures |
| Mobile calibration service | Can cover several instruments at the customer's facility | Available measurement ranges and capabilities may vary |
The comparison should focus on technical suitability rather than price alone. A less expensive service may not meet a particular measurement uncertainty, traceability, or documentation requirement.
How to Choose the Right Industrial Calibration Service
Choosing a calibration provider begins with understanding what the instrument measures and how the results will be used.
1. Identify the Measurement Requirements
Prepare an equipment list that includes the instrument type, measurement range, resolution, required tolerance, operating environment, and importance to the production process.
For example, a temperature sensor used for general warehouse monitoring may have different requirements from one used in a tightly controlled manufacturing process.
2. Check Accreditation and Scope
If accredited calibration is required, verify that the laboratory's accreditation is valid and that its scope covers the relevant measurement quantity, range, and calibration capability.
In India, the NABL directory can help users identify accredited laboratories and review their scopes. An accreditation logo alone is not sufficient evidence that every service offered by a provider is accredited.
3. Review Measurement Uncertainty
Ask whether the laboratory can provide an uncertainty appropriate for the intended application. The reference standard and calibration method must support the measurement requirements.
Traceability alone does not guarantee that the measurement uncertainty is small enough for a particular purpose.
4. Compare On-Site and Laboratory Calibration
On-site calibration may be practical for heavy, installed, or difficult-to-transport equipment. Laboratory calibration may be preferable when controlled environmental conditions or specialized equipment are necessary.
Consider whether the instrument can be removed from service and whether its performance needs to be assessed under actual installation conditions.
5. Examine Documentation
Check that the provider supplies clear calibration reports, instrument identification, recorded results, relevant uncertainty information, and traceability details.
If a conformity statement is needed, agree on the acceptance limits and decision rule before calibration begins.
6. Consider Total Cost and Turnaround Time
The full cost may include calibration charges, transportation, instrument removal, downtime, adjustment, repairs, and repeat visits.
A provider with a slightly higher service charge may be more practical if it offers suitable on-site coverage or reduces production interruptions.
Checklist for Evaluating a Calibration Provider
Use this checklist before selecting a service:
The provider supports the required instrument type and measurement range.
Accreditation status and scope have been verified where necessary.
Measurement uncertainty is suitable for the application.
Reference standards and traceability are documented.
Calibration methods and acceptance criteria are understood.
The provider supplies appropriate reports or certificates.
On-site and laboratory options have been considered.
Turnaround time and equipment downtime are acceptable.
Repair and adjustment charges are explained in advance.
Previous calibration records can be used to review instrument performance.
Best Practices for Calibration and Instrument Maintenance
Calibration works best when it is supported by routine equipment care and consistent recordkeeping.
Establish Appropriate Calibration Intervals
Calibration intervals should reflect instrument stability, previous calibration results, operating conditions, manufacturer recommendations, applicable regulations, and the consequences of an incorrect reading.
Frequently used instruments in harsh environments may need more frequent checks than stable instruments used under controlled conditions. Review the interval when repeated results indicate drift or when equipment undergoes significant repair.
Protect Instruments From Environmental Damage
Temperature changes, humidity, vibration, dust, moisture, and mechanical shocks can affect measuring instruments. Store equipment according to manufacturer instructions and avoid exposing precision tools to conditions outside their specified limits.
Perform Routine Verification
Intermediate checks can help identify unexpected changes between scheduled calibrations. Examples include checking a scale with suitable reference weights or comparing a temperature instrument against an appropriate reference.
These checks do not necessarily replace formal calibration, but they can provide additional evidence that an instrument remains suitable for use.
Maintain Complete Records
Each instrument should have a unique identification and an accessible history of calibration, maintenance, repairs, and verification.
Record the calibration date, results, acceptance status, and next review date according to the organization's procedures. Digital registers can help identify overdue instruments and support audit preparation.
Respond to Failed Calibration Results
When an instrument falls outside its required tolerance, prevent inappropriate use until its status has been evaluated. Depending on the risk, the organization may need to adjust or repair the instrument, recalibrate it, replace it, and investigate whether previous products or process decisions were affected.
A failed calibration should trigger a documented assessment rather than an automatic assumption that the instrument can continue operating normally.
Frequently Asked Questions
1. What is the main purpose of industrial calibration?
The main purpose is to establish how an instrument's readings compare with suitable reference standards. The results help organizations assess measurement performance, identify errors, and determine whether equipment is suitable for its intended use.
2. How often should industrial instruments be calibrated?
There is no single interval suitable for every instrument. The interval depends on the equipment's stability, usage, environmental conditions, previous results, risk, and applicable requirements. Organizations should establish and review intervals through a documented procedure.
3. What is the difference between calibration and verification?
Calibration establishes the relationship between an instrument's readings and reference values, including relevant measurement uncertainty. Verification determines whether specified requirements have been met. Verification may use calibration results, but the two activities are not interchangeable.
4. Does calibration improve an instrument's accuracy?
Calibration identifies and documents measurement performance. It does not necessarily change the instrument. If the results are outside acceptable limits, adjustment or repair may be needed to improve performance.
5. What is the difference between a calibrated instrument and an accredited calibration laboratory?
An instrument is calibrated when its measurement performance has been evaluated against suitable references. Laboratory accreditation provides independent recognition of technical competence within a defined scope. Using an accredited laboratory can support confidence in results when the relevant service is covered by that scope.
6. What information should a calibration certificate contain?
A certificate should provide sufficient information to identify the instrument and understand the calibration results. Depending on the service and applicable requirements, this includes measurement points, observed values, reference values, errors, uncertainty, traceability information, and relevant calibration conditions.
7. Can calibration be performed at an industrial facility?
Yes. On-site calibration is available for many types of instruments. However, the feasibility and achievable measurement uncertainty depend on the instrument, reference equipment, environment, and calibration method.
8. What happens if an instrument fails calibration?
The organization should assess the instrument's suitability, restrict its use when necessary, and arrange adjustment, repair, replacement, or further evaluation. It may also need to determine whether earlier measurements and products were affected.
9. Is ISO 9001 the same as ISO/IEC 17025?
No. ISO 9001 addresses quality management systems across different types of organizations. ISO/IEC 17025 addresses the competence and consistent operation of testing and calibration laboratories. They serve related but different purposes.
10. Why is measurement traceability important?
Traceability connects a measurement result to recognized references through a documented chain of calibrations, with each step contributing to uncertainty. It supports confidence in measurement comparisons, although the uncertainty must still be suitable for the intended application.
Conclusion
Industrial calibration services support reliable measurements across manufacturing, engineering, laboratories, and process industries. By comparing instruments with suitable reference standards, organizations can identify measurement errors, monitor equipment performance, and maintain appropriate quality controls.
Selecting the right calibration service requires more than comparing prices or checking whether a certificate is available. Businesses should consider measurement uncertainty, accreditation scope, traceability, instrument requirements, documentation, and operational conditions.
A well-managed calibration program combines appropriate service providers with regular verification, careful handling, complete records, and timely responses to failed results. These practices help organizations make better decisions about equipment, product quality, and process reliability.
Ultimately, calibration is not simply a periodic administrative task. It is part of a broader approach to measurement confidence, helping ensure that the data used in everyday industrial decisions are suitable for their intended purpose.
